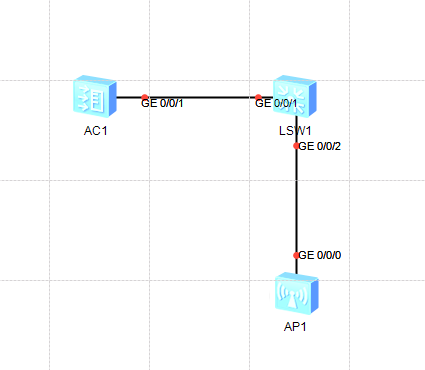

一、拓扑图

二、配置

LSW1配置：

    <SwitchA> system-view
    [SwitchA] dhcp enable
    [SwitchA] vlan batch 10 20
    [SwitchA] interface vlanif 10
    [SwitchA-Vlanif10] ip address 192.168.10.1 24
    [SwitchA-Vlanif10] dhcp select interface
    [SwitchA-Vlanif10]dhcp server option 43 sub-option 2 ip-address 192.168.10.100
    [SwitchA-Vlanif10] quit
    [SwitchA] interface vlanif 20
    [SwitchA-Vlanif20] ip address 192.168.20.1 24
    [SwitchA-Vlanif0] dhcp select interface
    [SwitchA-Vlanif20] quit
    [SwitchA] interface gigabitethernet 0/0/1
    [SwitchA-GigabitEthernet0/0/1] port link-type trunk
    [SwitchA-GigabitEthernet0/0/1] port trunk allow-pass vlan 10 20
    [SwitchA-GigabitEthernet0/0/1] quit
    [SwitchA] interface gigabitethernet 0/0/2
    [SwitchA-GigabitEthernet0/0/2] port link-type trunk
    [SwitchA-GigabitEthernet0/0/1] port trunk pvid vlan 10
    [SwitchA-GigabitEthernet0/0/2] port trunk allow-pass vlan 10 20
    [SwitchA-GigabitEthernet0/0/2] quit

AC: 配置接口、地址

    <AC> sys
    [AC] dhcp enable
    [AC] vlan batch 10 20
    [AC] interface vlanif 10
    [AC-Vlanif100] ip address 192.168.10.100 24
    [AC-Vlanif100] quit
    [AC-GigabitEthernet0/0/1] port link-type trunk
    [AC-GigabitEthernet0/0/1] port trunk allow-pass vlan 10 20
    [AC-GigabitEthernet0/0/1] quit

配置AP组

    [AC] wlan
    [AC-wlan-view] ap-group name ap-one
    [AC-wlan-ap-group-one] quit

配置域管理模板

    [AC-wlan-view] regulatory-domain-profile name default
    [AC-wlan-regulate-domain-default] country-code cn
    [AC-wlan-regulate-domain-default] quit
    [AC-wlan-view] ap-group name one
    [AC-wlan-ap-group-one] regulatory-domain-profile default

配置AC的源接口。

    [AC] capwap source interface vlanif 10

配置AP

    [AC] wlan
    [AC-wlan-view] ap auth-mode no-auth
    [AC-wlan-view] ap-id 0
    [AC-wlan-ap-0] ap-name ap1
    [AC-wlan-ap-0] ap-group one

配置安全模板

    [AC-wlan-view] security-profile name wlan-net
    [AC-wlan-sec-prof-wlan-net] security wpa-wpa2 psk pass-phrase 12345678 aes
    [AC-wlan-sec-prof-wlan-net] quit

配置SSID

    [AC-wlan-view] ssid-profile name CMCC
    [AC-wlan-ssid-prof-CMCC] ssid CMCC
    [AC-wlan-ssid-prof-CMCC] quit

配置VAP模板

    [AC-wlan-view] vap-profile name one
    [AC-wlan-vap-prof-one] forward-mode direct-forward
    [AC-wlan-vap-prof-one] service-vlan vlan-id 20
    [AC-wlan-vap-prof-one] security-profile wlan-net
    [AC-wlan-vap-prof-one] ssid-profile CMCC
    [AC-wlan-vap-prof-one] quit

配置AP组引用VAP模板

    [AC-wlan-view] ap-group name ap-group1
    [AC-wlan-ap-group-one] vap-profile CMCC wlan 1 radio 0
    [AC-wlan-ap-group-one] vap-profile CMCC wlan 1 radio 1
    [AC-wlan-ap-group-one] quit

配置AP射频0的信道和功率

    [AC-wlan-view] ap-id 0
    [AC-wlan-ap-0] radio 0
    [AC-wlan-radio-0/0] calibrate auto-channel-select disable
    [AC-wlan-radio-0/0] calibrate auto-txpower-select disable
    [AC-wlan-radio-0/0] channel 20mhz 6
    [AC-wlan-radio-0/0] eirp 127
    [AC-wlan-radio-0/0] quit

配置AP射频1的信道和功率

    [AC-wlan-ap-0] radio 1
    [AC-wlan-radio-0/1] calibrate auto-channel-select disable
    [AC-wlan-radio-0/1] calibrate auto-txpower-select disable
    [AC-wlan-radio-0/1] channel 20mhz 149
    [AC-wlan-radio-0/1] eirp 127
    [AC-wlan-radio-0/1] quit
    [AC-wlan-ap-0] quit
